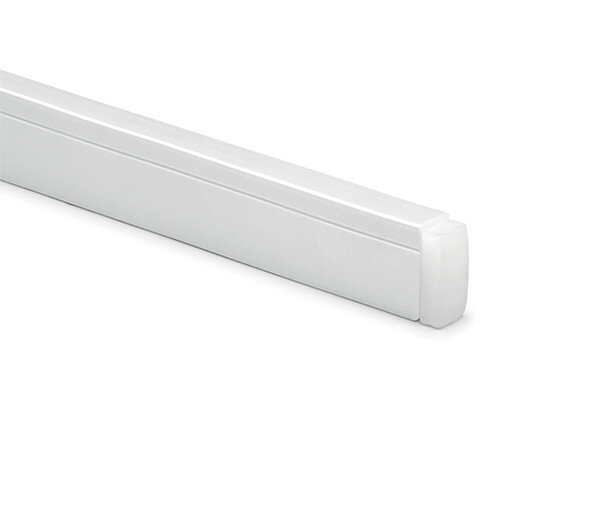

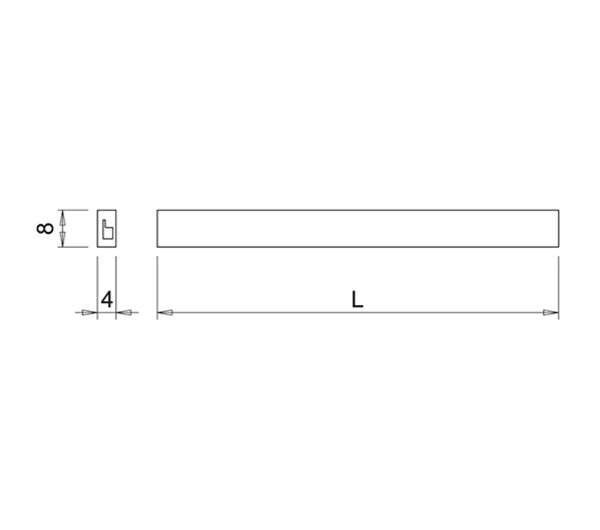

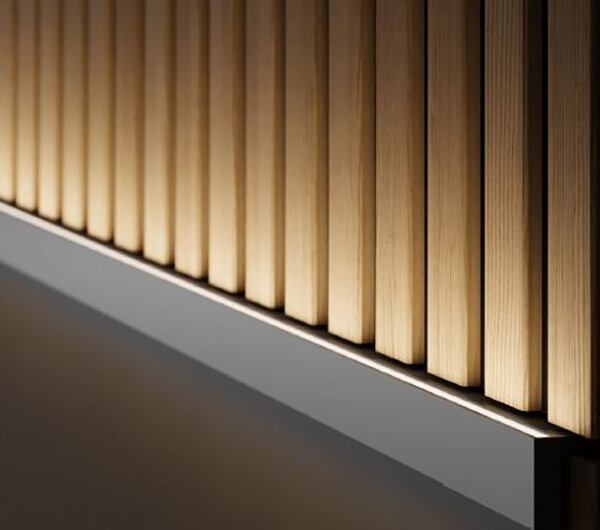

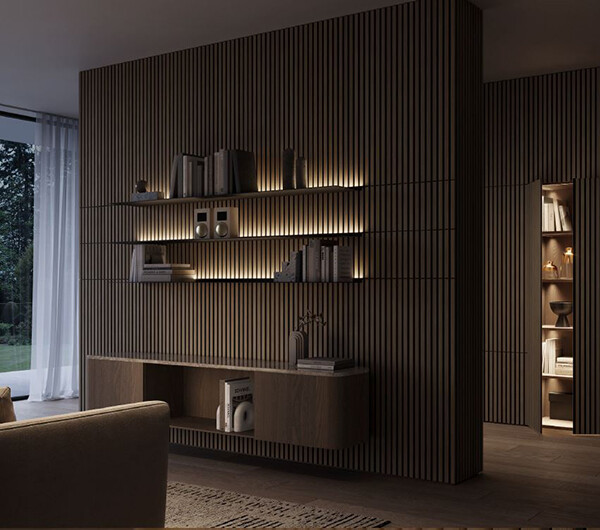

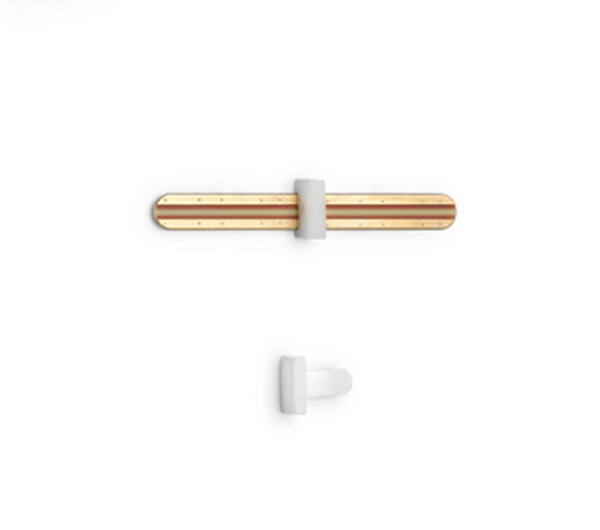

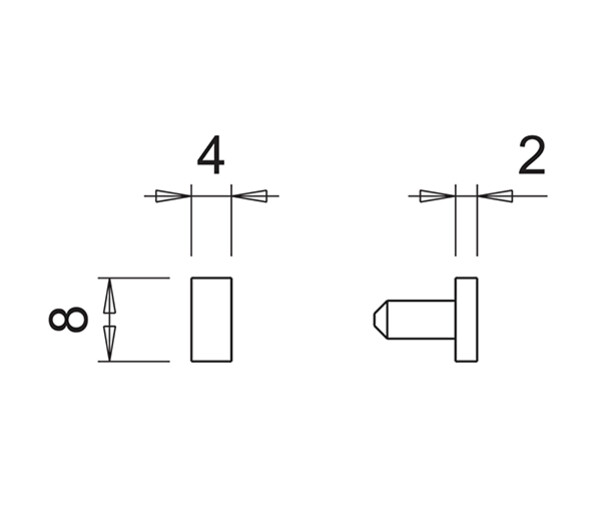

SE H4 ULTRA is a micro profile with symmetrical light projection for flush panel recessed installation on a 4mm wide and 8mm deep milled groove, recommended for use on any furnishing element. The device is configurable with power cable, back-to-back connector, and end cap (sold separately), with Plug&Play connection system.

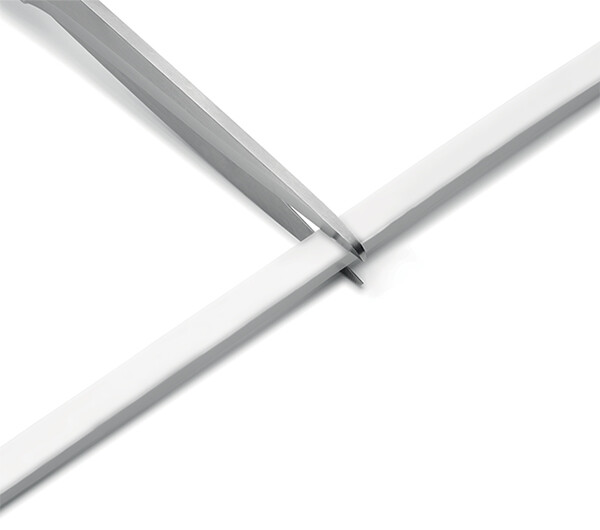

SE H4 ULTRA integrates a FREE-CUT light source that allows the module to be cut to the desired length at any point of the profile.
| Article | Name | Unit | Lenght, mm | Energy consumption, W/m | Input voltage | Luminous efficiency, lm/m | Luminous efficiency, lm/W | Color temperature, K | Price EUR per unit | Stock | Add to cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| special price new 33-DF0340000007 | LED silicone micro profile SE H4 ULTRA | m | - | 10 | 24 | 800 | 80 | 3000 | 12.44 |
|
|
| special price new 33-DF0340000008 | LED silicone micro profile SE H4 ULTRA | m | - | 10 | 24 | 1040 | 104 | 4300 | 12.44 |
|
|
| special price new 33-DF0340000005 | LED silicone micro profile SE H4 ULTRA D-M | m | - | 10 | 24 | 1100 | 110 | 2700-4000 | 16.14 |
|
|

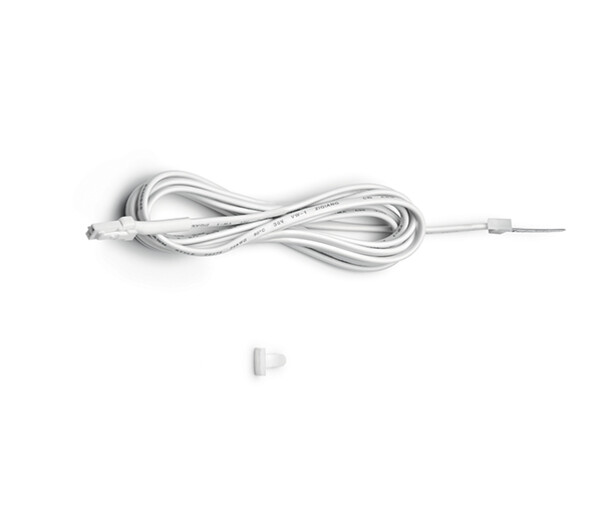

| special price new 33-DF0001000017 | Power cable SE H4 ULTRA M24 | Piece | 2000 | - | - | - | - | - | 6.83 |
|
|

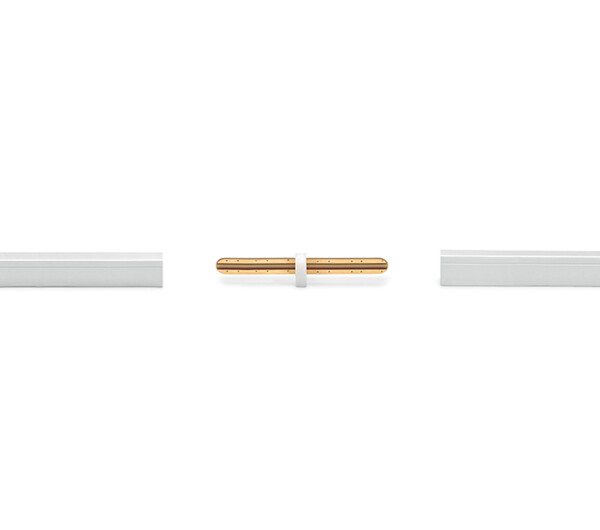

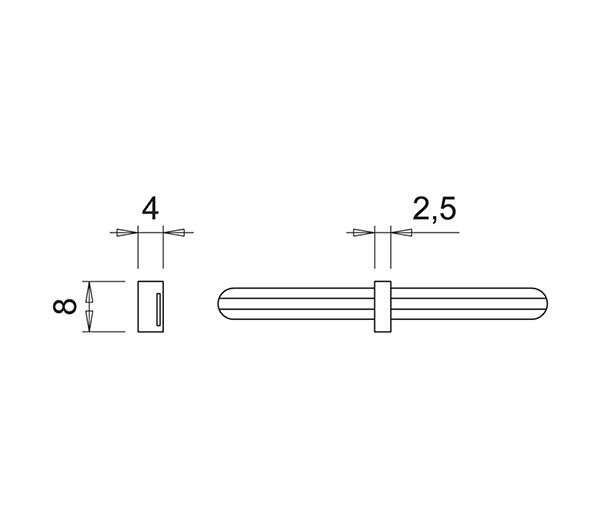

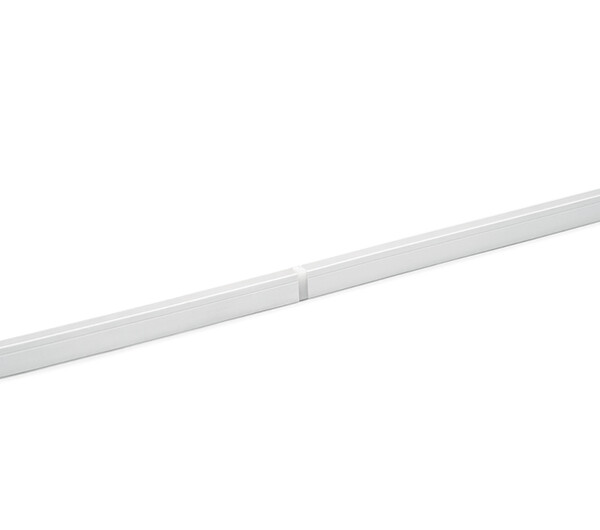

| special price new 33-DF0004000002 | Back-to-back conncetor SE H4 ULTRA | Piece | - | - | - | - | - | - | 6.83 |
|
