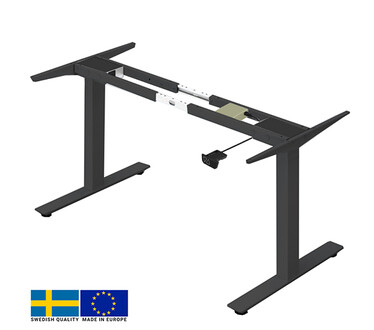

Stable, practical and reliable, the OSLO electrically height-adjustable table frame is equipped with with 2 powerful electric motors, for quiet, easy and smooth height adjustment. Equipped with an anti-collision auto-stop system to prevent possible collisions. The 3-stage adjustable table legs provide a more stable and 33% faster height adjustment, as well as a 33% greater adjustment range compared to 2-stage leg frames. 2 memory mode min/max height positions can be set.

Technical specification for the frame:

• 2 powerful electric motors
• 3 leg stages
• Maximum lifting capacity with table top (even weight distribution over table top): 120kg
• Lifting speed (depending on load): 32-40mm/s
• Noise level: <38-48db
• Min/max lift height (with table top 25mm): from 641mm to 1291mm.
• Adjustment range: 650mm

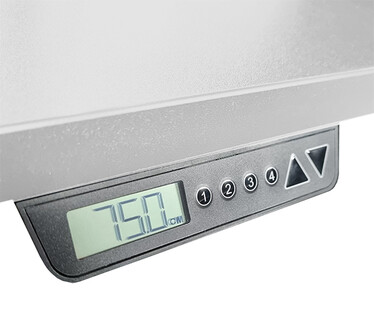

• Control panel with programmable memory for two (min/max) lowering and raising positions.
• Equipped with automatic anti-collision braking system
• Lifting leg pipe sizes: 80×60; 70×50; 60x40mm,
• Foot length: 700mm. Heel with adjustment for leveling the table on uneven floors (-0/+10mm)
• Recommended tabletop width: 1200mm to 2000mm
• Recommended tabletop depth: 600mm to 900mm
